Venn Diagrams and the Algebra of Set Laws

Fundamentals of Visualizing Sets

The Role of Venn Diagrams

Venn diagrams provide a visual way to represent sets and their relationships. We use overlapping circles to show how elements interact within a defined space. This method simplifies logical statements into clear geometric shapes for students.

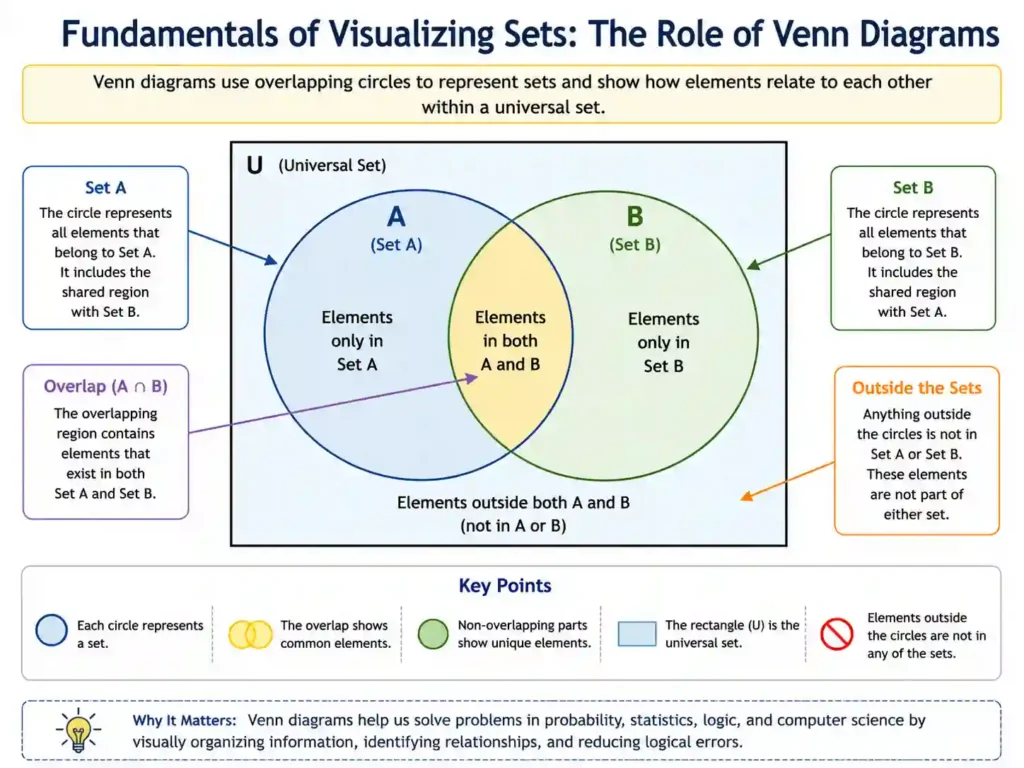

Each circle represents a specific set, such as Set A or Set B. The area inside the circle contains all members belonging to that group. When circles overlap, the shared space represents elements existing in both sets simultaneously.

Mathematicians use these diagrams to solve problems in probability and statistics. By looking at the areas, we quickly identify which elements are unique or shared. This visual approach reduces the chance of making logical errors during calculation.

The boundary of a set is usually a smooth curve or circle. Anything outside this boundary does not belong to the set. This clear distinction helps in defining the scope of our mathematical operations and logical reasoning.

Visualizing sets allows us to grasp abstract concepts more naturally. Instead of just looking at lists, we see the structure of the data. This foundation is essential for learning advanced topics in discrete mathematics and logic.

Defining the Universal Set

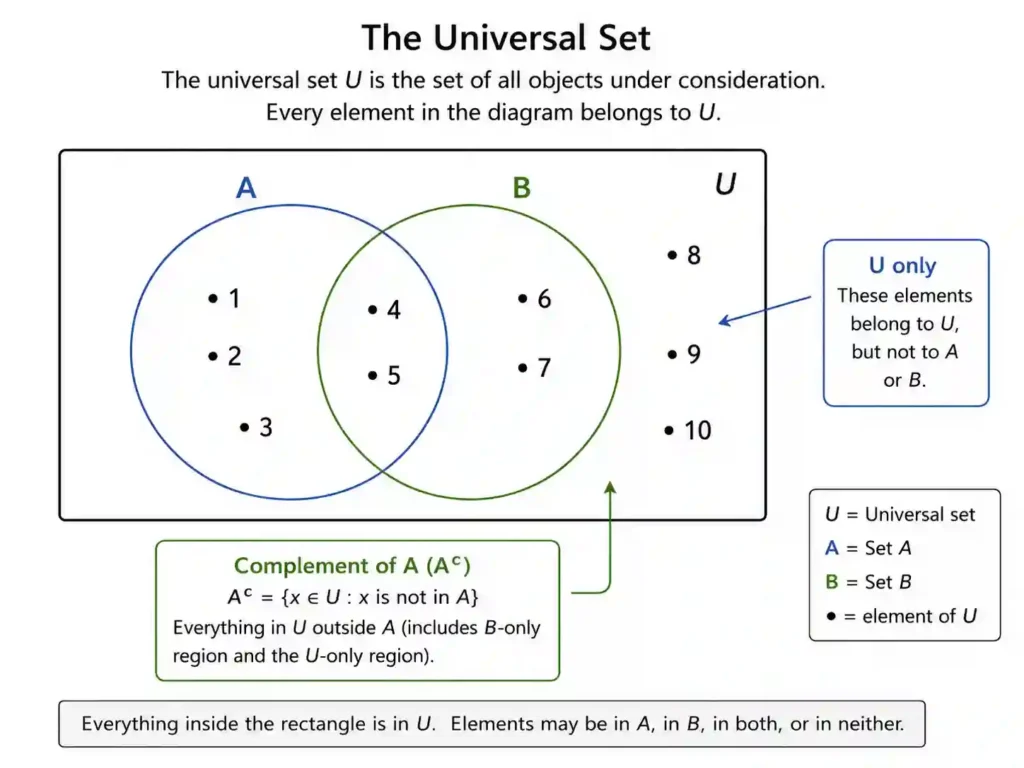

The universal set ##U## represents the totality of all elements being studied. In a Venn diagram, we draw a large rectangle to symbolize this universe. Every other set must stay within the borders of this rectangular frame.

Defining the universal set is the first step in any set theory problem. If we study integers, ##U## might be the set of all integers ##\mathbb{Z}##. This context determines what elements can possibly exist in our subsets.

Without a universal set, the concept of a complement becomes impossible to define. The complement of set ##A## consists of everything in ##U## that is not in ##A##. Therefore, ##U## provides the necessary background for operations.

Elements outside the circles but inside the rectangle belong to the universal set only. They are not part of the specific subsets we are focusing on. This distinction helps categorize every single item within the problem's scope.

The size of the universal set can be finite or infinite. Regardless of its size, we treat it as the ultimate container. Understanding its role ensures that we do not include irrelevant data in our mathematical calculations.

Core Set Operations and Visuals

Union and Intersection

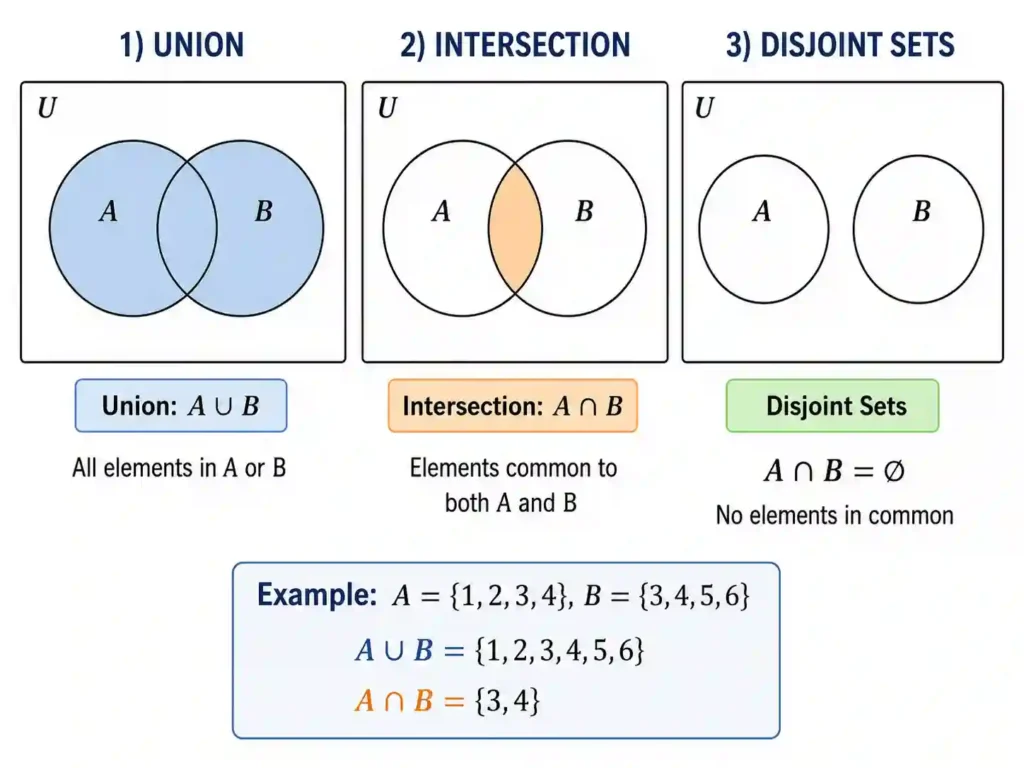

The union of two sets, written as ##A \cup B##, includes all elements from both. It combines the contents without repeating any shared members. Visually, this covers the entire area of both circles in the Venn diagram.

Intersection, denoted as ##A \cap B##, focuses only on the shared elements. In the diagram, this is the overlapping region where the two circles meet. It represents the "and" condition in logical operations and set theory.

If two sets have no elements in common, their intersection is the empty set ##\emptyset##. We call these disjoint sets, and they appear as separate circles that do not touch. This visual separation indicates a lack of shared properties.

Calculating these operations requires careful attention to the membership of each element. We must ensure that each item is accounted for exactly once in a union. This precision is vital for accurate data analysis and logical proofs.

Use the following math problem to practice these operations with basic sets. Identifying the members of the union and intersection is a fundamental skill. It prepares you for more complex algebraic manipulations of sets later.

Set Difference and Complement

Set difference, noted as ##A - B##, includes elements in ##A## that are not in ##B##. In a diagram, this looks like a crescent moon shape. We remove the overlapping part from the first set's total area.

The complement of a set ##A##, written as ##A'##, includes everything in ##U## outside ##A##. This operation depends entirely on the definition of the universal set. It covers all space in the rectangle not occupied by ##A##.

Complements help us describe what an element is not. If ##A## is the set of even numbers, its complement in the set of integers is the set of odd numbers. This duality is a core part of logic.

We can visualize the complement of a union as the area outside both circles. This region represents elements that belong to neither ##A## nor ##B##. Understanding these external areas is key to mastering De Morgan's laws.

Practicing these visuals builds intuition for algebraic proofs. When we subtract one set from another, we are essentially filtering the data. This logic is used extensively in computer science for database queries and filtering.

Algebra of Sets and Identities

Commutative and Associative Laws

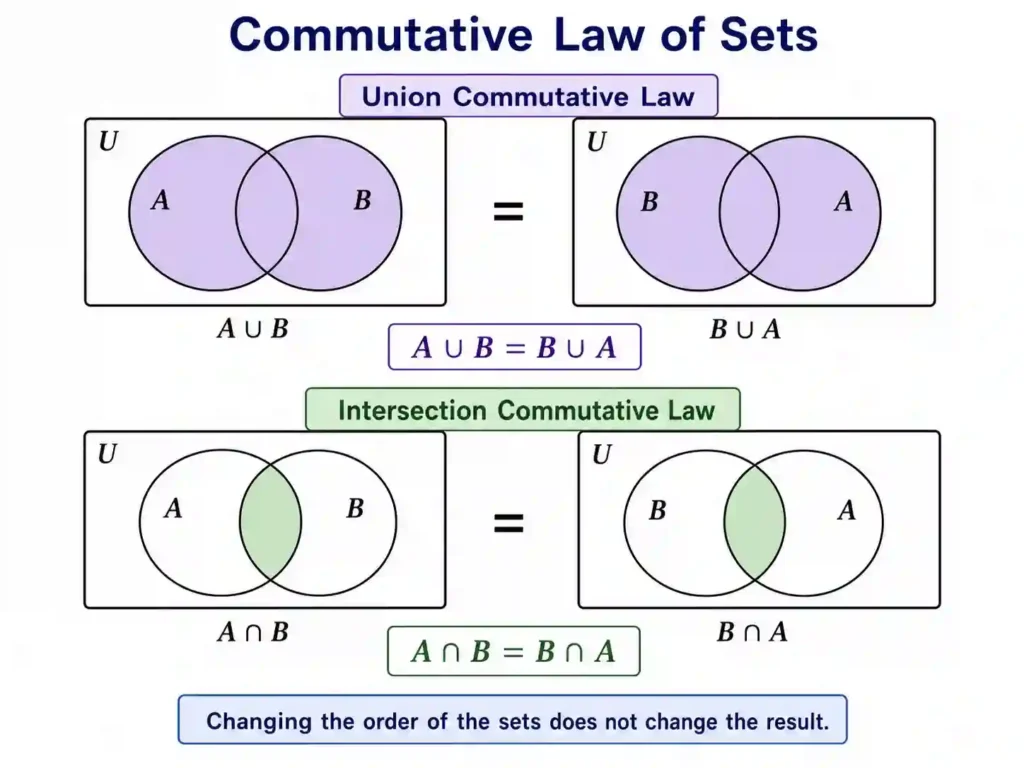

The algebra of sets follows specific rules similar to standard arithmetic. The commutative law states that the order of sets in a union or intersection does not matter. Thus, ##A \cup B## is exactly the same as ##B \cup A##.

This symmetry also applies to intersections, where ##A \cap B = B \cap A##. These laws simplify calculations by allowing us to rearrange terms. It ensures that the result remains consistent regardless of how we approach the problem.

Associative laws deal with how we group three or more sets together. For union, ##(A \cup B) \cup C = A \cup (B \cup C)##. This means the grouping of operations does not change the final collection of elements.

Similarly, for intersection, ##(A \cap B) \cap C = A \cap (B \cap C)##. We can find the common elements of two sets first, then compare with the third. The final result will always include elements shared by all three.

These laws form the backbone of set simplification. By applying them, we can reduce complex expressions into simpler forms. This is particularly useful when dealing with large datasets or complex logical conditions in programming.

Distributive and Identity Laws

Distributive laws describe how union and intersection interact with each other. The first law states that ##A \cup (B \cap C) = (A \cup B) \cap (A \cup C)##. This allows us to distribute the union across the intersection.

The second distributive law is ##A \cap (B \cup C) = (A \cap B) \cup (A \cap C)##. Here, we distribute the intersection over the union of two sets. This mirrors the distribution of multiplication over addition in algebra.

Identity laws involve the universal set ##U## and the empty set ##\emptyset##. Any set unioned with the empty set remains itself, ##A \cup \emptyset = A##. This shows that the empty set adds no new elements.

When we intersect a set with the universal set, the result is the set itself, ##A \cap U = A##. This is because all elements of ##A## are already contained within ##U##. These identities are essential for simplifying proofs.

Test your understanding of these identities with this math problem. Verify that the distributive property holds true for the given sets. This exercise reinforces the connection between visual diagrams and algebraic manipulation of sets.

De Morgan’s Laws and Proofs

Understanding the First Law

De Morgan’s laws are fundamental principles that relate unions, intersections, and complements. The first law states that the complement of a union is the intersection of the complements. Algebraically, we write this as ##(A \cup B)' = A' \cap B'##.

This law tells us that being "not in the union" is the same as being "not in ##A## AND not in ##B##." Visually, the area outside both circles is the overlap of the areas outside each individual circle.

We use this law to simplify logical negations in computer programming. Instead of checking if a value is outside a large range, we check if it fails two specific conditions. This often makes the code more readable.

Proving this law involves showing that every element in the left side is also in the right side. We pick an arbitrary element ##x## and track its membership through the operations. This step-by-step logic confirms the identity.

Understanding the first law provides a deep insight into the structure of logic. It shows how the "OR" operation in a union transforms into an "AND" operation for complements. This transformation is a powerful tool in mathematics.

Applying the Second Law

The second of De Morgan’s laws states that the complement of an intersection equals the union of the complements. We express this as ##(A \cap B)' = A' \cup B'##. This relates the shared region to the outer regions.

This means that if an element is not in the intersection, it must be missing from at least one of the sets. It could be outside ##A##, outside ##B##, or outside both. This covers a large portion of the universe.

In a Venn diagram, the complement of the intersection is everything except the small overlapping middle part. This matches the union of everything outside ##A## and everything outside ##B##. The visual proof is very intuitive.

These laws are used to design digital circuits and search engine algorithms. They help engineers optimize logic gates and refine search queries. Mastering them is essential for anyone entering technical fields like software engineering or data science.

Use this final math problem to verify the second De Morgan law. By listing the elements for both sides of the equation, you can see the law in action. This concludes our technical study of set algebra and visuals.
