In this chapter, we’re going to explore the fascinating world of lines, specifically focusing on Parallel Perpendicular Lines. These seemingly simple concepts form the backbone of geometry and have surprisingly wide-ranging applications. We’ll begin by laying a solid foundation, making sure everyone understands the basics before moving on to more complex ideas.

This lesson will provide you with a solid understanding of parallel and perpendicular lines. The study of Parallel and Perpendicular Lines is fundamental to geometry and has wide-ranging applications in various fields.

Introduction to Lines and Slopes

This module introduces the basic concepts of lines and their slopes. We will define:

1. What a line is?
2. How it’s represented in a coordinate plane?
3. How to calculate its slope.?

Understanding the slope is crucial for determining whether lines are parallel or perpendicular. We will also discuss the different forms of linear equations, such as slope-intercept form, point-slope form, and standard form. This module lays the groundwork for understanding the relationship between Parallel and Perpendicular Lines.

What is a Line?

In geometry, a line is a one-dimensional figure that extends infinitely in both directions. It is a fundamental concept in Euclidean geometry. Lines are often represented in a coordinate plane, which is a two-dimensional space defined by two perpendicular axes: the x-axis (horizontal) and the y-axis (vertical). Every point on the line can be described by an ordered pair (x, y), where x is the horizontal coordinate and y is the vertical coordinate. The study of lines is essential for understanding more complex geometric shapes and concepts. Lines are characterized by their constant rate of change, which is described by their slope.

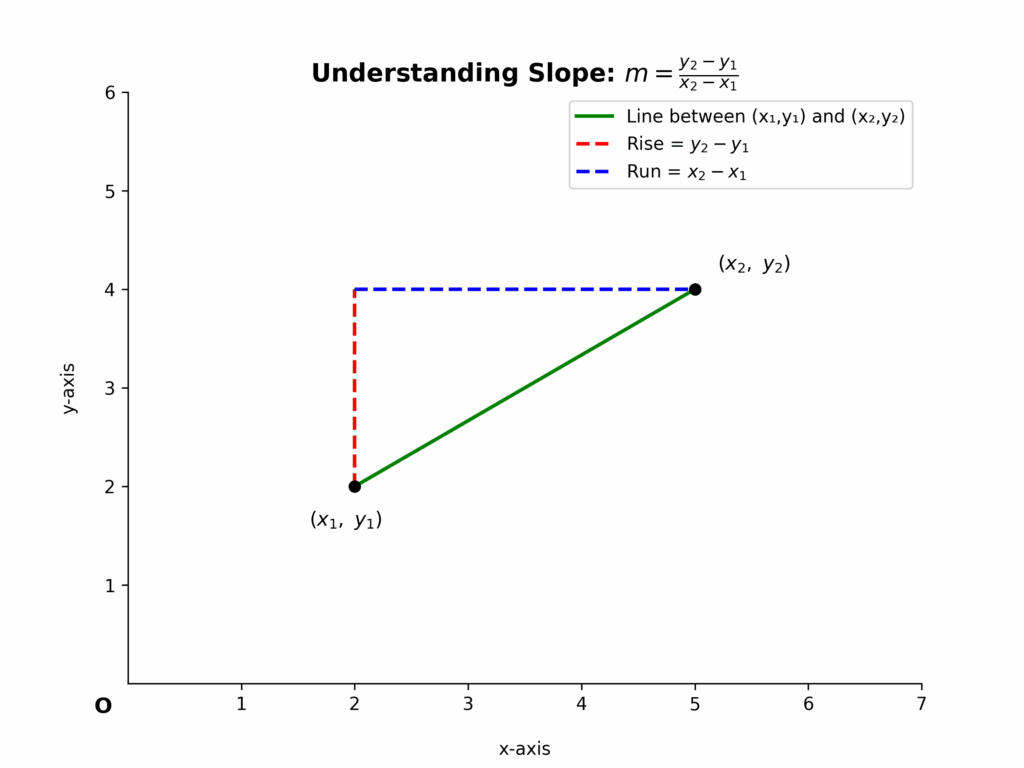

Understanding Slope

The slope of a line is a measure of its steepness and direction. It is defined as the ratio of the vertical change (rise) to the horizontal change (run) between any two points on the line.

Mathematically, the slope (often denoted by ‘m’) is calculated using the following formula:

###m = \frac{y_2 – y_1}{x_2 – x_1}###

where (x₁, y₁) and (x₂, y₂) are two distinct points on the line. A positive slope indicates that the line rises from left to right, a negative slope indicates that the line falls from left to right, a slope of zero indicates a horizontal line, and an undefined slope indicates a vertical line. Understanding the slope is crucial for determining the relationship between Parallel and Perpendicular Lines.

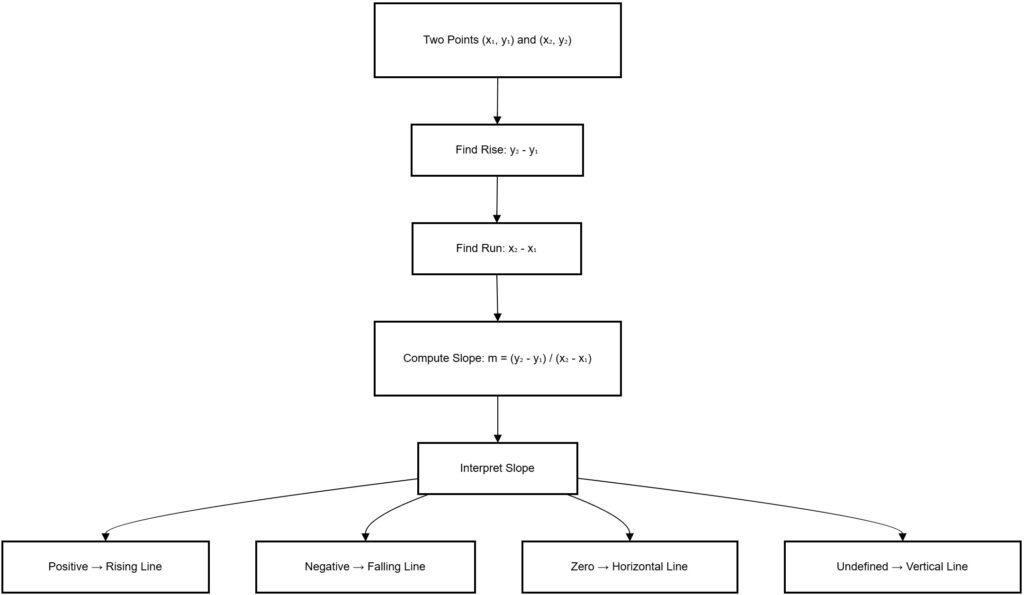

Step to calculate the slope of a line

Forms of Linear Equations

Linear equations can be represented in various forms, each offering different insights into the line’s properties. The most common forms include:

• Slope-intercept form: ##y = mx + b##, where ‘m’ is the slope and ‘b’ is the y-intercept (the point where the line crosses the y-axis). This form is particularly useful for identifying the slope and y-intercept directly.
• Point-slope form: ##y – y_1 = m(x – x_1)##, where ‘m’ is the slope and (x₁, y₁) is a point on the line. This form is useful when you know the slope and a point on the line.
• Standard form: ##Ax + By = C##, where A, B, and C are constants. This form is often used for general representations of linear equations.

Understanding these forms allows for easy manipulation and analysis of linear equations, which is essential when dealing with Parallel and Perpendicular Lines

Parallel Lines

This module focuses on parallel lines. We will define what parallel lines are, explore their properties, and learn how to identify them using their slopes. We will also work through examples to solidify your understanding. The concept of parallel lines is a cornerstone in geometry, and it’s essential to understand their properties before moving on to perpendicular lines. The relationship between the slopes of Parallel and Perpendicular Lines is a key concept.

Definition and Properties of Parallel Lines

Parallel lines are lines in a plane that never intersect. They maintain a constant distance from each other. The key property of parallel lines is that they have the same slope. If two lines have the same slope, they are parallel. Conversely, if two lines are parallel, they must have the same slope. This property is fundamental to identifying and working with parallel lines. For example, consider two lines in a coordinate plane; if the slope of line 1 is 2, and the slope of line 2 is also 2, then these lines are parallel. This is a crucial aspect of Parallel and Perpendicular Lines.

Identifying Parallel Lines using Slope

To determine if two lines are parallel, calculate the slope of each line. If the slopes are equal, the lines are parallel. If the lines are given in different forms (e.g., standard form), you may need to convert them to slope-intercept form (##y = mx + b##) to easily identify the slope. For example, if we have two lines: ##2x + y = 3## and ##4x + 2y = 6##, we can rewrite them as ##y = -2x + 3## and ##y = -2x + 3##. Since both lines have a slope of -2, they are parallel. This process is a critical skill when dealing with Parallel and Perpendicular Lines.

Examples of Parallel Lines

Let’s look at some examples:

Example 1: Determine if the lines ##y = 3x + 2## and ##y = 3x – 1## are parallel.

Solution: Both lines have a slope of 3. Therefore, they are parallel.

Example 2: Determine if the lines ##2x + y = 4## and ##4x + 2y = 8## are parallel.

Rewrite the equations in slope-intercept form: ##y = -2x + 4## and ##y = -2x + 4##.

Both lines have a slope of -2. Therefore, they are parallel. These examples illustrate how to apply the concept of slope to identify Parallel Perpendicular Lines.

Perpendicular Lines

Let us explore perpendicular lines. We will define what perpendicular lines are, explore their properties, and learn how to identify them using their slopes. We will also work through examples to solidify your understanding. Perpendicular lines are lines that intersect at a right angle (90 degrees). Understanding the relationship between the slopes of Parallel and Perpendicular Lines is crucial for this module.

Definition and Properties of Perpendicular Lines

Perpendicular lines are lines that intersect at a right angle (90 degrees).

The key property of perpendicular lines is that their slopes are negative reciprocals of each other.

This means that if the slope of one line is ‘m’, the slope of a line perpendicular to it is ##-\frac{1}{m}##.

For example, if one line has a slope of 2, a line perpendicular to it will have a slope of ##-\frac{1}{2}##. This relationship is essential for identifying and working with perpendicular lines. This is a key characteristic of Parallel Perpendicular Lines.

Identifying Perpendicular Lines using Slope

To determine if two lines are perpendicular, calculate the slope of each line. If the product of the slopes is -1, the lines are perpendicular. Alternatively, check if the slopes are negative reciprocals of each other. For example, if we have two lines with slopes of 3 and ##-\frac{1}{3}##, respectively, these lines are perpendicular because ##3 \times -\frac{1}{3} = -1##. This method is a critical skill when dealing with Parallel and Perpendicular Lines.

Examples of Perpendicular Lines

Let’s look at some examples:

Example 1: Determine if the lines ##y = 2x + 1## and ##y = -\frac{1}{2}x + 3## are perpendicular.

The slopes are 2 and ##-\frac{1}{2}##. Since ##2 \times -\frac{1}{2} = -1##, the lines are perpendicular.

Example 2: Determine if the lines ##3x + y = 2## and ##x – 3y = 6## are perpendicular.

Rewrite the equations in slope-intercept form: ##y = -3x + 2## and ##y = \frac{1}{3}x – 2##. The slopes are -3 and ##\frac{1}{3}##. Since ##-3 \times \frac{1}{3} = -1##, the lines are perpendicular.These examples demonstrate how to apply the concept of slope to identify Parallel Perpendicular Lines.

Equations of Parallel and Perpendicular Lines

This module focuses on writing the equations of parallel and perpendicular lines. We will learn how to find the equation of a line that is parallel or perpendicular to a given line and passes through a specific point. This involves using the slope-intercept form, point-slope form, and the properties of parallel and perpendicular lines. The ability to derive equations is crucial for practical applications involving Parallel and Perpendicular Lines.

Finding the Equation of a Parallel Line

To find the equation of a line parallel to a given line and passing through a specific point, follow these steps:

1. Determine the slope of the given line: Convert the given equation to slope-intercept form (##y = mx + b##) if necessary. The slope ‘m’ is the coefficient of x.
2. Use the same slope for the parallel line: Parallel lines have the same slope.
3. Use the point-slope form: Substitute the slope (m) and the coordinates of the given point (x₁, y₁) into the point-slope form: ##y – y_1 = m(x – x_1)##.
4. Simplify to slope-intercept form (optional): If desired, rearrange the equation to slope-intercept form (##y = mx + b##).

Finding the Equation of a Perpendicular Line

To find the equation of a line perpendicular to a given line and passing through a specific point, follow these steps:

1. Determine the slope of the given line: Convert the given equation to slope-intercept form (##y = mx + b##) if necessary.
2. Find the negative reciprocal of the slope: The slope of the perpendicular line is ##-\frac{1}{m}##, where ‘m’ is the slope of the given line.
3. Use the point-slope form: Substitute the new slope and the coordinates of the given point (x₁, y₁) into the point-slope form: ##y – y_1 = m(x – x_1)##.
4. Simplify to slope-intercept form (optional): If desired, rearrange the equation to slope-intercept form (##y = mx + b##).

Examples of Equations of Parallel and Perpendicular Lines

Let’s look at some examples:

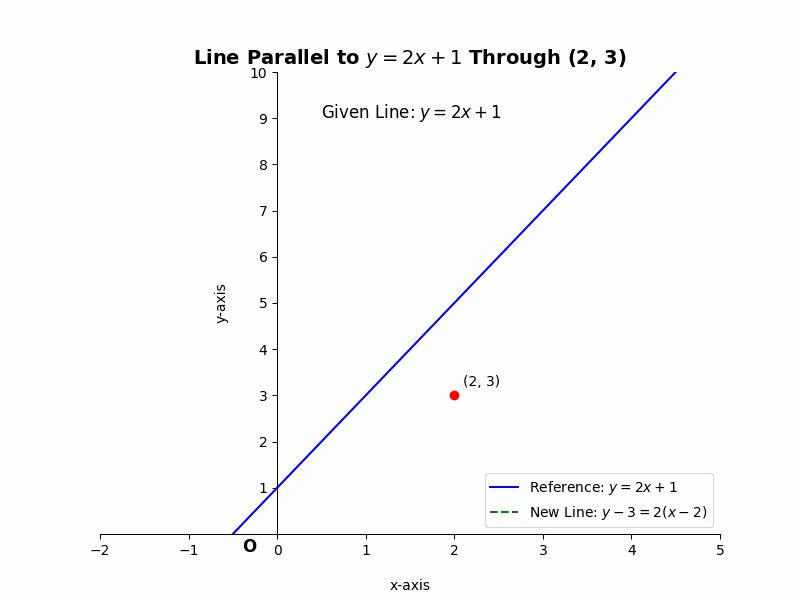

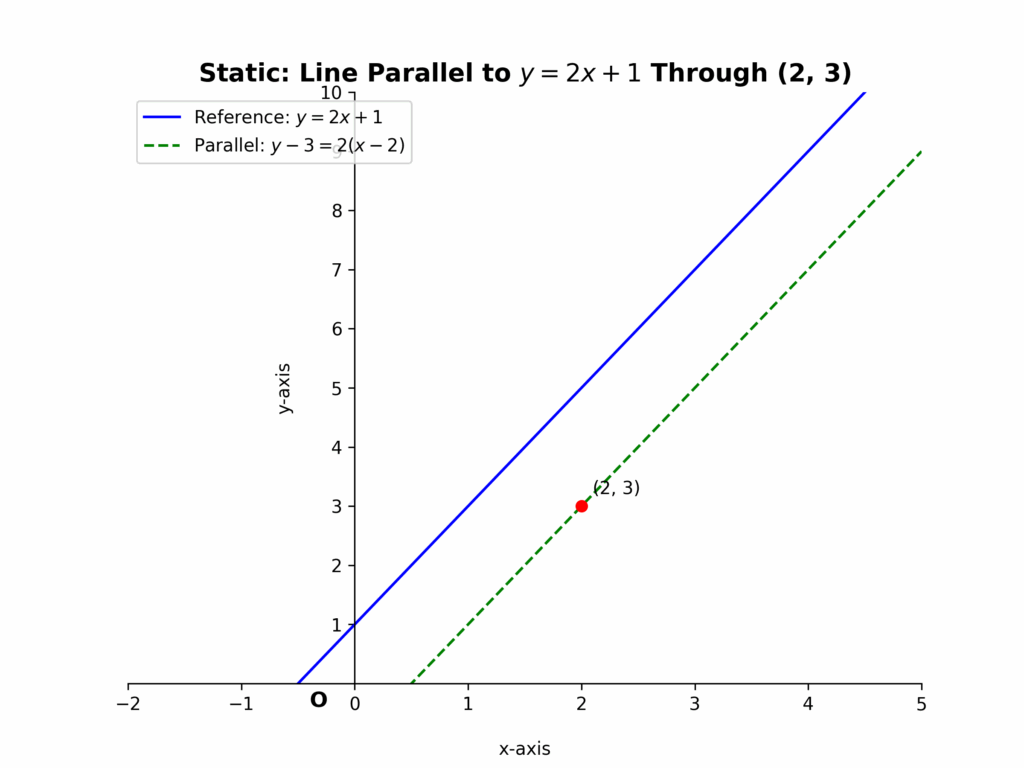

Example 1: Find the equation of the line parallel to ##y = 2x + 1## and passing through the point (2, 3).

1. The given line has a slope ##m = 2##.
2. A parallel line will have the same slope ##m = 2##.
3. Use the point-slope form with the point ##(2, 3)##:y – 3 = 2(x – 2)
4. Simplify the equation: ##y – 3 = 2x – 4 \implies y = 2x – 4 + 3 \implies y = 2x – 1 ##
5. The equation ##y = 2x – 1## is parallel to ##y = 2x + 1## and passes through ##(2, 3)##. The lines do not overlap because their ##y##-intercepts differ.

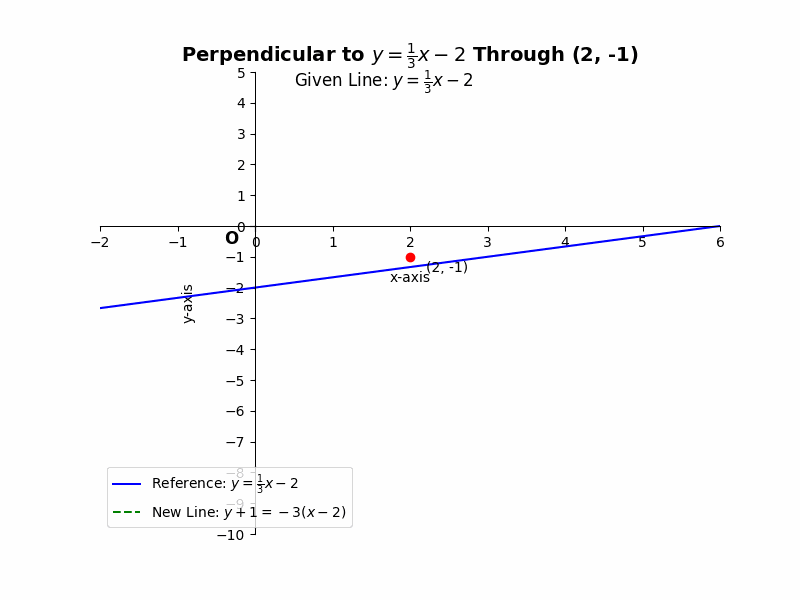

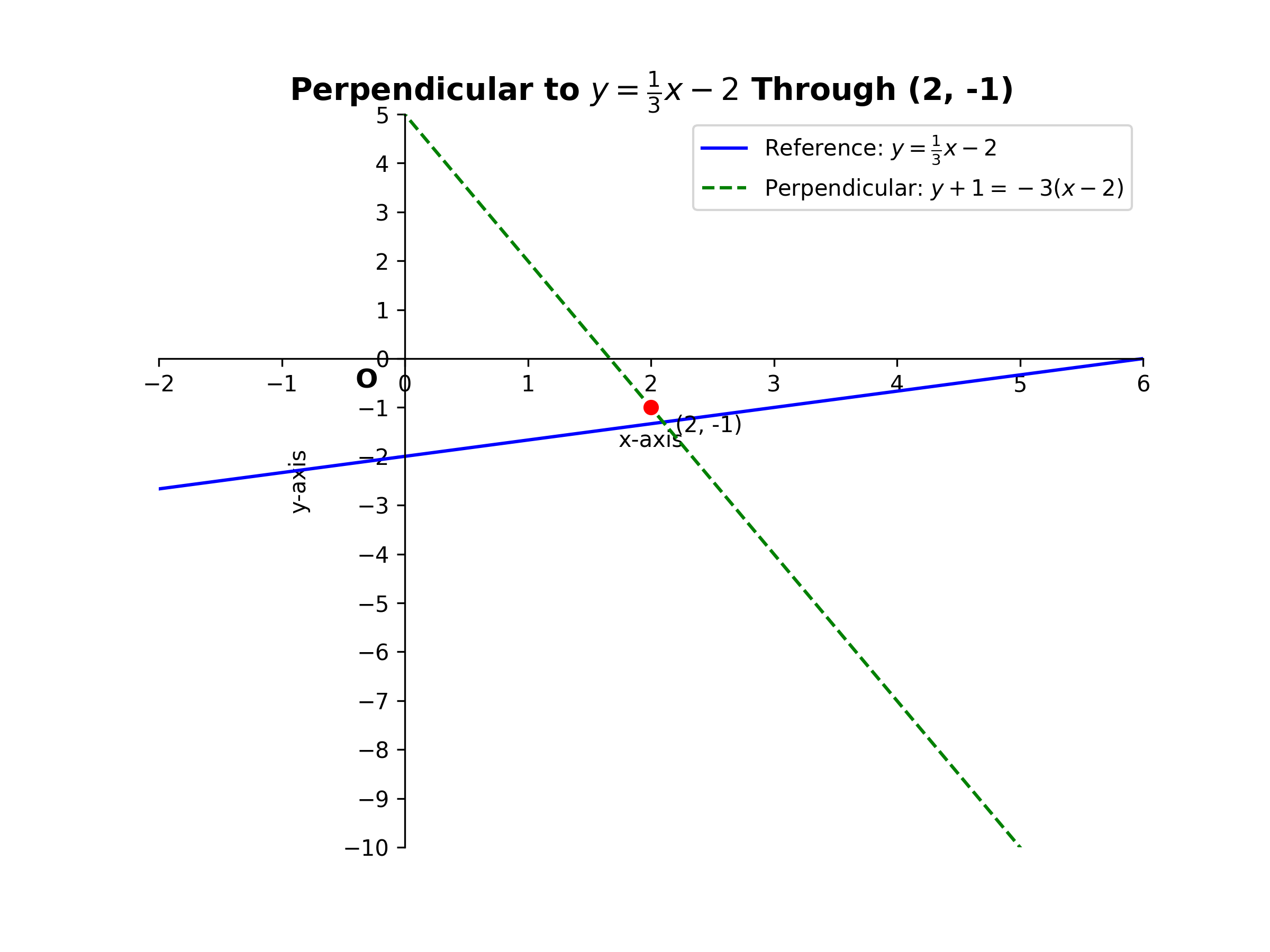

Example 2: Find the equation of the line perpendicular to ##y = \frac{1}{3}x – 2## and passing through the point (2, -1). The slope of the given line is ##\frac{1}{3}##. The perpendicular line has a slope of -3. Using the point-slope form: ##y – (-1) = -3(x – 2)##. Simplifying, we get ##y = -3x + 5##.

These examples demonstrate how to find the equations of Parallel & Perpendicular Lines.

Applications of Parallel and Perpendicular Lines

This module explores the real-world applications of parallel and perpendicular lines. We will discuss how these concepts are used in various fields, such as architecture, engineering, and cartography. Understanding these applications can provide a deeper appreciation for the practical relevance of Parallel Perpendicular Lines.

Applications in Architecture and Engineering

Parallel and perpendicular lines are fundamental in architecture and engineering. They are used to design stable structures, ensure that walls are straight and perpendicular to the floor, and create aesthetically pleasing designs. For example, the beams in a building’s frame are often parallel to each other to distribute weight evenly, and the walls are perpendicular to the floor to provide structural support. Engineers use these concepts to calculate angles, distances, and stresses in structures. The precision offered by Parallel Perpendicular Lines is essential in ensuring the safety and functionality of buildings and infrastructure.

Applications in Cartography and Navigation

In cartography (mapmaking) and navigation, parallel and perpendicular lines are used to create coordinate systems, such as latitude and longitude, which help locate positions on the Earth’s surface. Latitude lines are parallel to each other, and longitude lines intersect them at right angles, forming a grid. This grid system is essential for determining locations, planning routes, and creating accurate maps. The accuracy of these systems relies heavily on the properties of Parallel Perpendicular Lines.

Other Applications

Parallel and perpendicular lines have applications in various other fields, including:

• Computer Graphics: Used in rendering 3D objects and creating realistic images.
• Art and Design: Used to create perspective, depth, and balance in compositions.
• Robotics: Used in path planning and controlling the movement of robots.

The versatility of Parallel Perpendicular Lines makes them a fundamental concept across many disciplines.

Advanced Topics and Extensions

This module delves into more advanced topics related to parallel and perpendicular lines. We will explore the concept of distance between a point and a line, and the properties of parallel lines in 3D space. These advanced topics provide a deeper understanding of the concepts related to Parallel Perpendicular Lines.

Distance Between a Point and a Line

The distance between a point and a line is the shortest distance from the point to any point on the line. This distance is measured along a perpendicular line from the point to the given line. The formula to calculate the distance ‘d’ between a point (x₁, y₁) and a line ##Ax + By + C = 0## is: ###d = \frac{|Ax_1 + By_1 + C|}{\sqrt{A^2 + B^2}}### This formula is useful in various applications, such as determining the closest distance from a point to a path or a boundary. This concept extends the applications of Parallel Perpendicular Lines.

Parallel Lines in 3D Space

In three-dimensional space, parallel lines are lines that lie in the same plane and never intersect. They have the same direction vector. Determining if lines are parallel in 3D space involves comparing their direction vectors. If the direction vectors are scalar multiples of each other, the lines are parallel. The concepts of slope are replaced by direction vectors in 3D. Understanding this extends the applications of Parallel Perpendicular Lines to 3D geometry.

Further Exploration

Further exploration of this topic can include:

• Skew Lines: Lines in 3D space that are not parallel and do not intersect.
• Planes: Understanding the relationship between lines and planes in 3D space.
• Vector Equations of Lines: Using vectors to represent lines and their properties.

These topics provide a more comprehensive understanding of Parallel Perpendicular Lines.

Practice Problems

This module provides practice problems to reinforce your understanding of the concepts covered in this course. Solving these problems will help you apply the knowledge you’ve gained and improve your problem-solving skills. Practice is essential for mastering the concepts of Parallel Perpendicular Lines.

Problem Set 1: Slope and Equations

Find the slope of the line passing through the points (2, 3) and (4, 7).

Solution: ##m = \frac{7-3}{4-2} = 2##

Write the equation of the line in slope-intercept form that passes through the point (1, -2) and has a slope of 3.

Solution: ##y = 3x – 5##

Find the slope and y-intercept of the line ##2x – 3y = 6##.

Solution: Slope = ##\frac{2}{3}##, y-intercept = -2

Problem Set 2: Parallel and Perpendicular Lines

Determine if the lines ##y = 4x + 1## and ##y = 4x – 3## are parallel, perpendicular, or neither.

Solution: Parallel

Determine if the lines ##y = \frac{1}{2}x + 5## and ##y = -2x + 1## are parallel, perpendicular, or neither.

Solution: Perpendicular

Find the equation of the line parallel to ##y = -x + 4## and passing through the point (0, 2).

Solution: ##y = -x + 2##

Find the equation of the line perpendicular to ##y = 3x – 1## and passing through the point (3, 1).

Solution: ##y = -\frac{1}{3}x + 2##

These practice problems will help you master the concepts of Parallel Perpendicular Lines.

Conclusion

In this course, we have explored the fundamental concepts of parallel and perpendicular lines. We have covered their definitions, properties, how to identify them using slope, how to write their equations, and their applications in various fields. The ability to understand and work with Parallel Perpendicular Lines is a crucial skill in mathematics and has wide-ranging applications in real-world scenarios.

Review of Key Concepts

Let’s recap the key concepts:

• Slope: The measure of a line’s steepness and direction.
• Parallel Lines: Lines with the same slope that never intersect.
• Perpendicular Lines: Lines that intersect at a right angle, with slopes that are negative reciprocals of each other.
• Equations of Lines: Using slope-intercept form, point-slope form, and standard form to represent lines.
• Applications: Real-world uses in architecture, engineering, cartography, and more.

A strong understanding of these concepts is essential for future mathematical studies involving Parallel Perpendicular Lines

Final Thoughts

Congratulations on completing this course! You now have a solid foundation in parallel and perpendicular lines. Continue practicing and applying these concepts to further enhance your understanding. Remember that mathematics is a cumulative subject; each concept builds upon the previous ones. By mastering Parallel Perpendicular Lines, you have taken a significant step forward in your mathematical journey. Keep exploring, keep learning, and keep practicing. The knowledge gained in this course will serve as a valuable asset in your future mathematical endeavors.
