In this lesson, we’ll explore circles within the context of the coordinate plane. We’ll focus on understanding what a circle is, how it’s represented on a plane, and key concepts like radius, diameter, and the center. This lesson serves as a foundation, preparing you for more advanced topics like the equations of circles in the next chapter. Our focus will be on the geometric properties and visual representation of circles. We will delve into the properties of circles, their components, and how they relate to the coordinate plane.

Furthermore, a Circle in a Coordinate Plane is a fascinating area to explore. For example, the coordinate plane gives us a way to represent geometric shapes using numbers. We’ll also be looking at how to visualize these circles and how to locate points on a circle without needing to use its equation. Therefore, we’ll be looking at how these concepts connect to real-world scenarios, giving you a practical understanding of this fundamental geometric shape.

What is a Circle?

A circle is a fundamental geometric shape. It’s defined as the set of all points in a plane that are equidistant from a central point. This central point is called the center of the circle, and the distance from the center to any point on the circle is called the radius. Think of it like drawing a perfect loop with a compass; the center is where you place the compass’s point, and the radius is the distance you set the pencil to.

Key Components of a Circle

Let’s define some essential terms related to circles:

• Center: The central point from which all points on the circle are equidistant.
• Radius (r): The distance from the center of the circle to any point on the circle. All radii of the same circle are equal in length.
• Diameter (d): The distance across the circle through its center. The diameter is twice the radius (d = 2r).
• Circumference (C): The distance around the circle. It’s calculated using the formula ##C = 2\pi r## or ##C = \pi d##, where ##\pi## (pi) is approximately 3.14159.
• Chord: A line segment whose endpoints both lie on the circle.
• Secant: A line that intersects a circle at two points.
• Tangent: A line that touches the circle at only one point.
• Arc: A portion of the circumference of a circle.

Circles on the Coordinate Plane

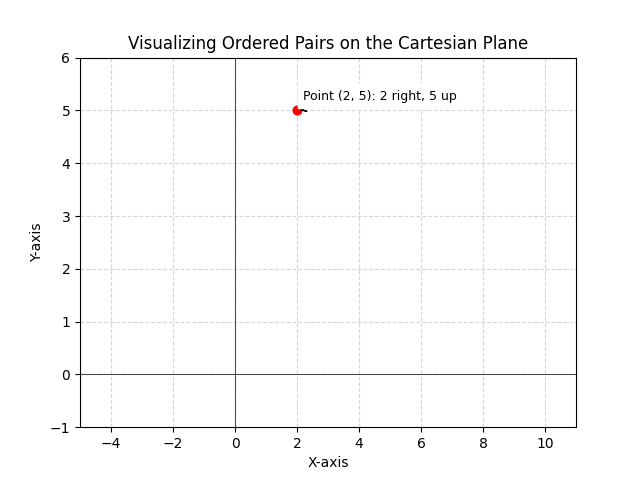

The coordinate plane (also known as the Cartesian plane) allows us to represent geometric shapes using numbers. A circle on the coordinate plane is defined by its center, which has coordinates (h, k), and its radius, r. Each point on the circle can be represented by its x and y coordinates.

Consider a circle with its center at the origin (0, 0) and a radius of 5 units. Any point on this circle will be 5 units away from the origin. For example, the points (5, 0), (-5, 0), (0, 5), and (0, -5) all lie on this circle.

Visualizing Circles

Let’s visualize some examples of circles on the coordinate plane.

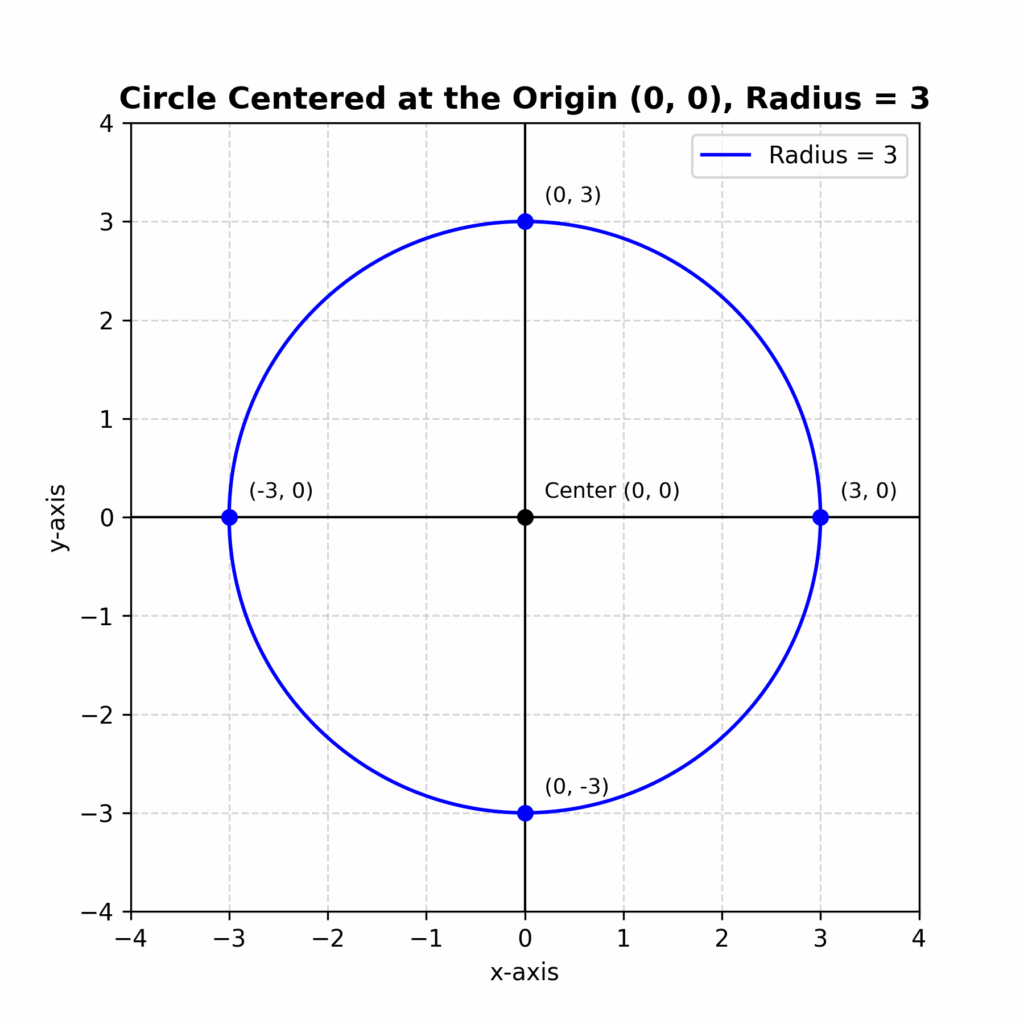

Example 1: Circle Centered at the Origin

Consider a circle with a center at (0, 0) and a radius of 3 units. We can plot several points on this circle by moving 3 units away from the origin in any direction. Some points include (3, 0), (-3, 0), (0, 3), and (0, -3). The circle will appear as a perfect round shape centered at the origin.

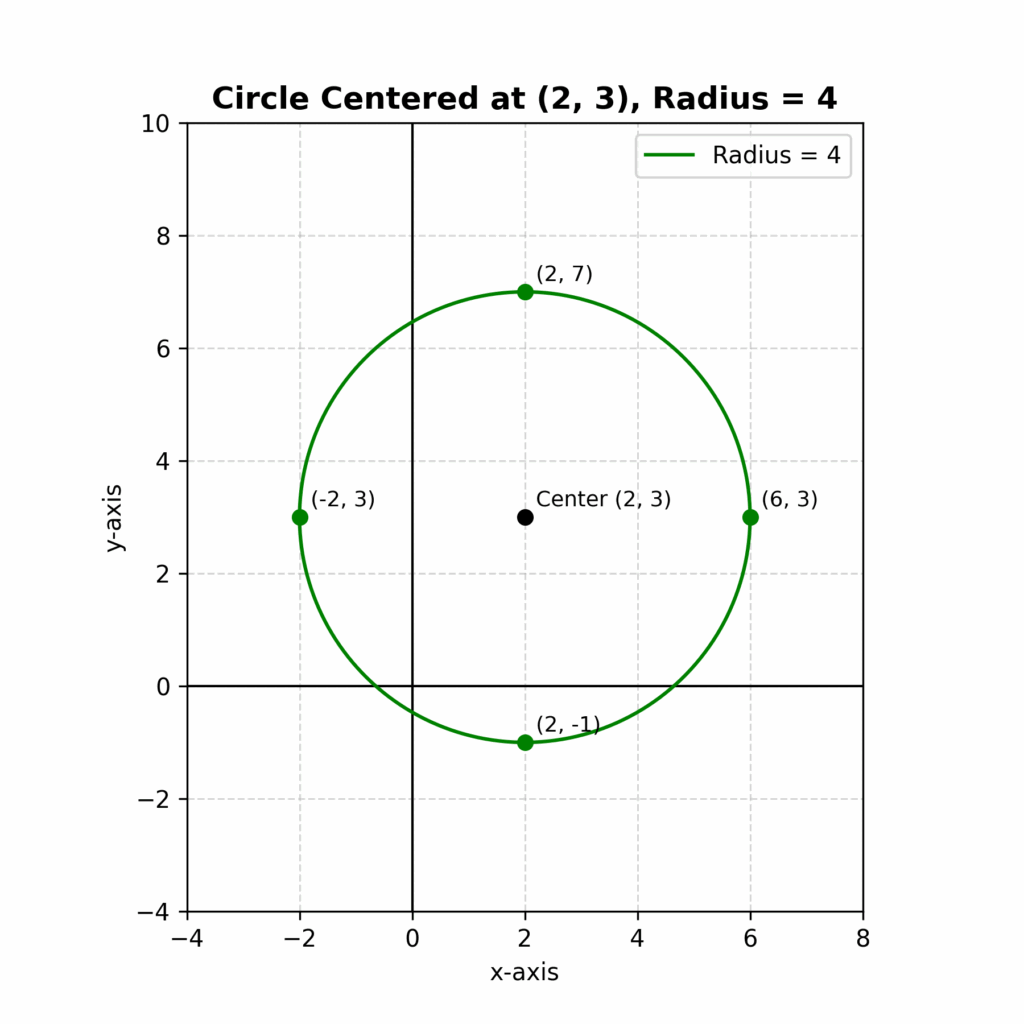

Example 2: Circle Centered at a Different Point

Now, let’s consider a circle with a center at (2, 3) and a radius of 4 units. To plot points on this circle, we’ll move 4 units away from the center in various directions. For example, we can find points like (6, 3), (-2, 3), (2, 7), and (2, -1). This circle will be shifted from the origin, but it will still maintain its round shape.

Finding Points on a Circle (Without the Equation)

While we haven’t yet discussed the equation of a circle, we can still determine if a point lies on a circle if we know the center and radius. The distance formula helps us determine the distance between the center and any point on the plane.

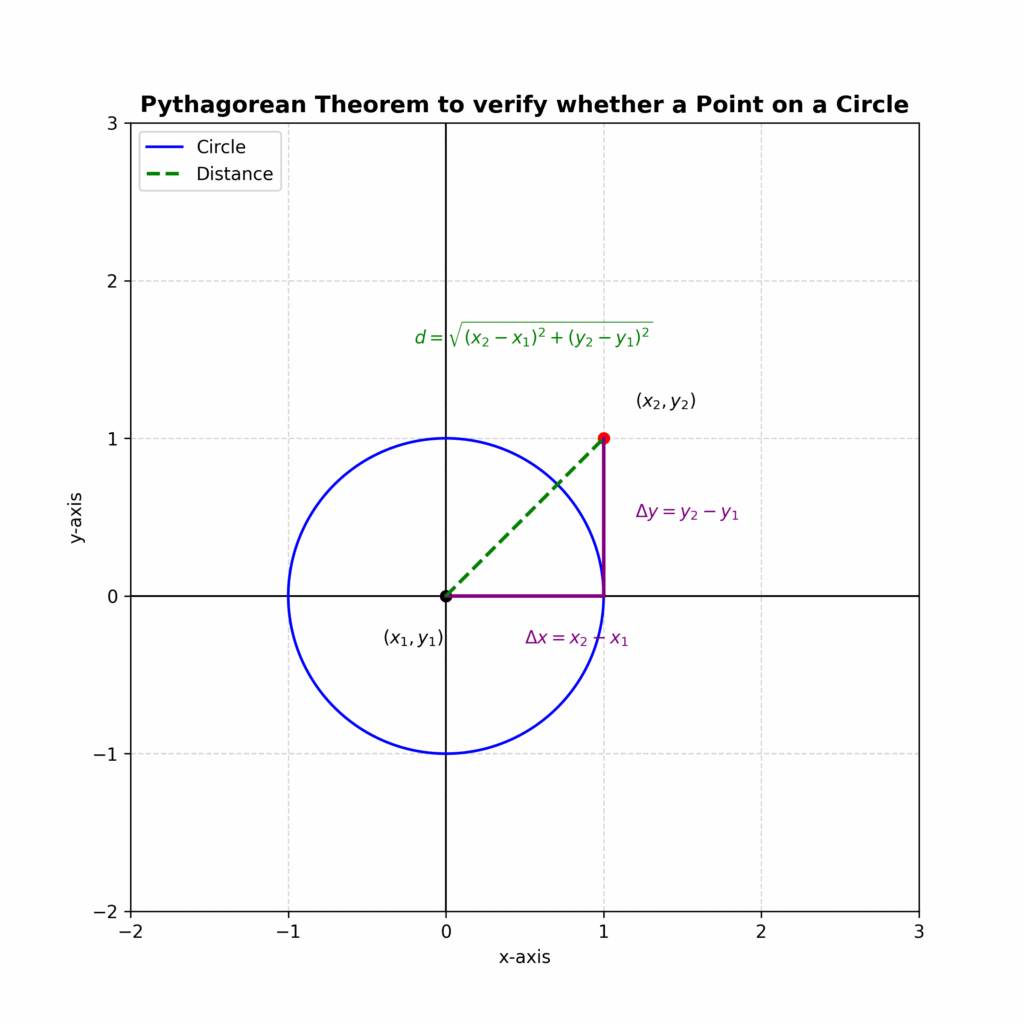

The distance formula is derived from the Pythagorean theorem. If we have two points, (x1, y1) and (x2, y2), the distance d between them is:

### d = \sqrt{(x_2 – x_1)^2 + (y_2 – y_1)^2} ###

If the distance between a point and the center of the circle equals the radius, then the point lies on the circle.

Example:

Consider a circle with a center at (1, 2) and a radius of 5. Determine if the point (4, 6) lies on the circle.

Using the distance formula:

### d = \sqrt{(4 – 1)^2 + (6 – 2)^2} ###### d = \sqrt{3^2 + 4^2} ###### d = \sqrt{9 + 16} ###### d = \sqrt{25} ###### d = 5 ###

Since the distance d is equal to the radius (5), the point (4, 6) lies on the circle.

Illustrative Examples and Exercises

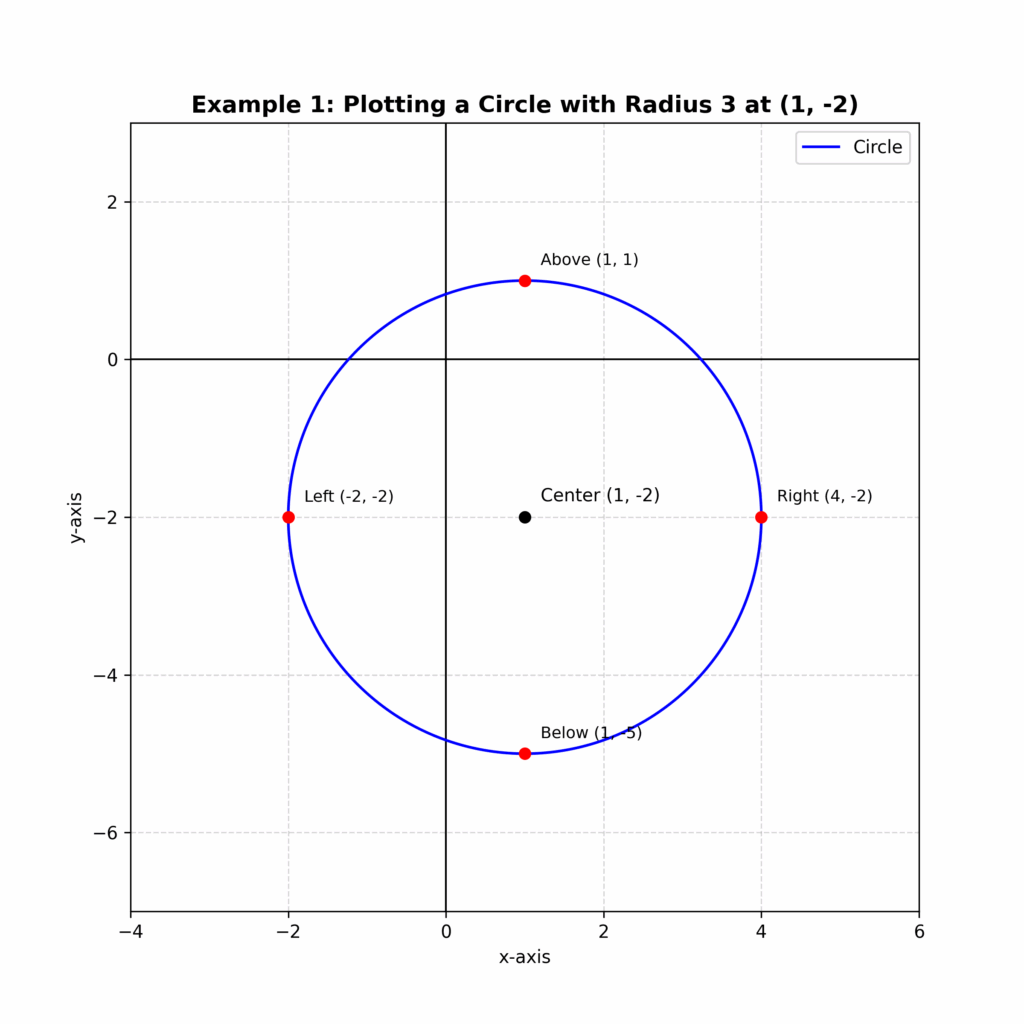

Example 1: Plotting a Circle

Plot a circle with a center at (1, -2) and a radius of 3 units. Find at least four points that lie on the circle.

Solution:

1. Center: (1, -2)

2. Radius: 3

3. Points:

• To the right of the center: (1+3, -2) = (4, -2)
• To the left of the center: (1-3, -2) = (-2, -2)
• Above the center: (1, -2+3) = (1, 1)
• Below the center: (1, -2-3) = (1, -5)

You can plot these points on the coordinate plane and sketch the circle.

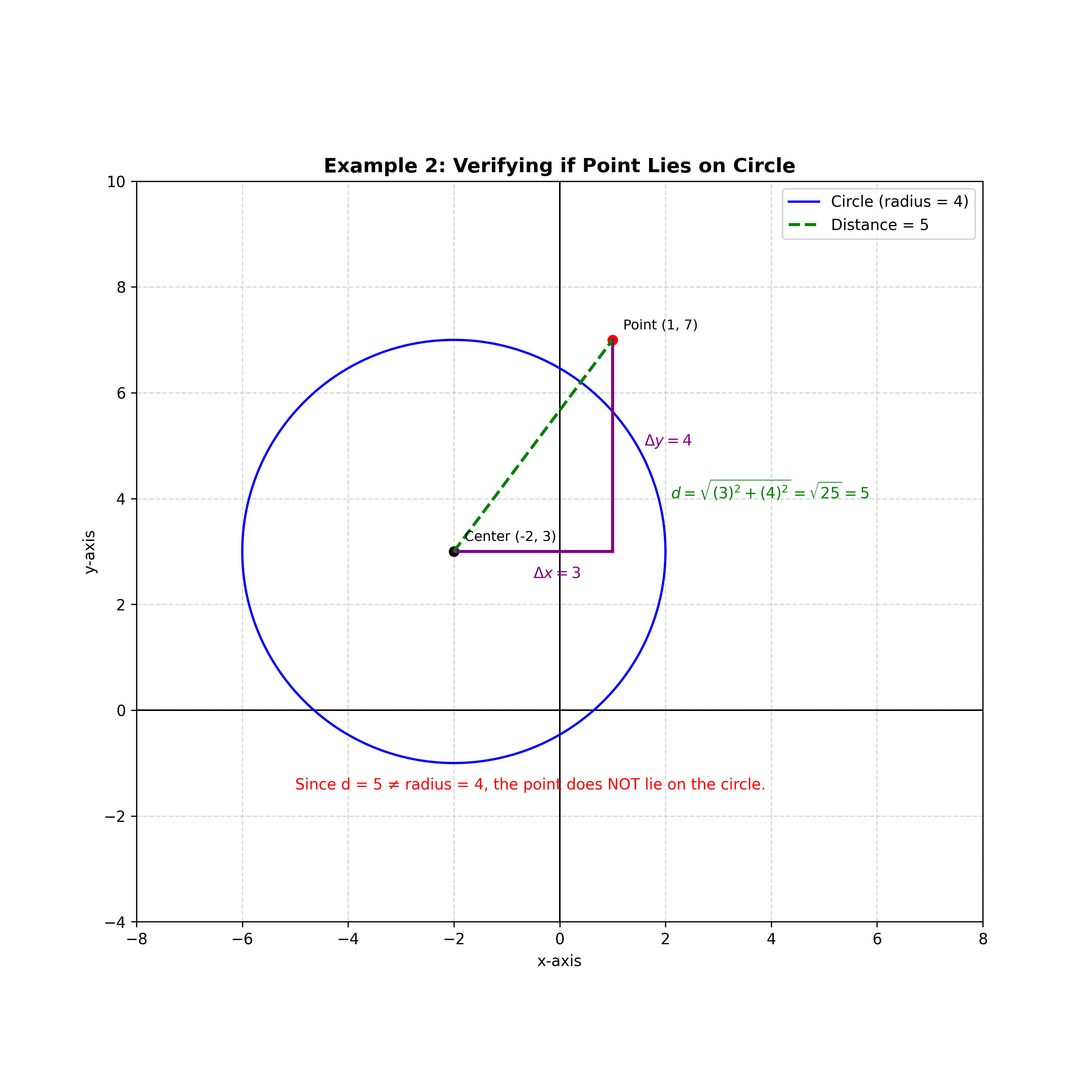

Example 2: Determining if a Point Lies on a Circle

A circle has a center at (-2, 3) and a radius of 4. Determine if the point (1, 7) lies on the circle.

Solution:

1. Center: (-2, 3)

2. Radius: 4

3. Point: (1, 7)

4. Distance Formula:

### d = \sqrt{(x_2 – x_1)^2 + (y_2 – y_1)^2} ###### d = \sqrt{(1 – (-2))^2 + (7 – 3)^2} ###### d = \sqrt{(3)^2 + (4)^2} ###### d = \sqrt{9 + 16} ###### d = \sqrt{25} ###### d = 5 ###

5. Comparison: The calculated distance (5) is not equal to the radius (4). Therefore, the point (1, 7) does not lie on the circle.

Example 3: Finding the Diameter

A circle has a radius of 7 units. What is its diameter?

Solution:

1. Radius: r = 7

2. Diameter Formula: d = 2r

3. Calculation: d = 2 * 7 = 14

4. Answer: The diameter of the circle is 14 units.

Example 4: Finding the Circumference

A circle has a radius of 5 units. Calculate its circumference.

Solution:

1. Radius: r = 5

2. Circumference Formula: C = 2πr

3. Calculation: C = 2 π 5 = 10π

4. Answer: The circumference of the circle is 10π units (approximately 31.42 units).

Exercises

Try these exercises to solidify your understanding:

1. Plot a circle with a center at (-3, 1) and a radius of 2 units. Label at least four points on the circle.
2. A circle has a center at (0, 4) and a radius of 6. Does the point (6, 4) lie on the circle? Explain your answer.
3. If a circle has a diameter of 10 units, what is its radius?
4. Calculate the circumference of a circle with a radius of 8 units. Use π ≈ 3.14.
5. A circle is centered at (2, -1). The point (5, 3) lies on the circle. What is the radius of the circle?

Answers to Exercises:

1. Plot the circle and label points such as (-1, 1), (-3, 3), (-5, 1), and (-3, -1).
2. Yes, the point (6, 4) lies on the circle. The distance from (0, 4) to (6, 4) is 6, which is equal to the radius.
3. The radius is 5 units.
4. The circumference is approximately 50.24 units.
5. The radius is 5 units.

Real-World Applications

Circles are everywhere in the real world. Understanding them is crucial for various applications:

• Engineering: Designing wheels, gears, and circular structures.
• Architecture: Creating domes, arches, and circular buildings.
• Navigation: Using circles to determine distances and positions (e.g., GPS).
• Computer Graphics: Rendering circles and other shapes in 2D and 3D graphics.
• Astronomy: Understanding the orbits of planets and the shapes of celestial bodies.

Further Exploration

This lesson provides a basic understanding of circles on a coordinate plane. To further enhance your knowledge, consider these topics:

• Equations of Circles: Learn the standard and general forms of the equation of a circle.
• Tangent Lines: Explore the properties of tangent lines to circles.
• Chords and Arcs: Investigate the relationships between chords, arcs, and central angles.
• Conic Sections: Study other conic sections like ellipses, parabolas, and hyperbolas.

Conclusion

Congratulations! You’ve completed the introduction to circles on the coordinate plane. You now have a foundational understanding of what a circle is, its components, and how it’s represented on a coordinate plane. This knowledge will serve as a stepping stone for more advanced topics in coordinate geometry. Keep practicing, and you’ll master the concepts in no time! Remember, the key to success in mathematics is consistent practice and a willingness to explore. The concepts we’ve covered, specifically the properties of circles on a coordinate plane, will be invaluable as you delve deeper into the subject. The next chapter will focus on the equations of circles, so be sure to review this material to build a strong foundation.
